IML Global Leader

Sungsu mechatronics Co,.LTD

As a company specializing in screen printing, SUNGSU MECHATRONICS have been producing IML,IMEA, Inlay, Membrane Switch, Touch Sensor and Antenna. We’ve dedicated ourselves to produce fine quality products with constant research and development. We will continue to contribute ourselves to create refined quality products and work towards the higher customer satisfaction.



What makes SUNGSU MECHATRONICS different?

  1. We have attracted Samsung Electronics, LG Hyundai, and Kia as our main customers. We are an IML specialized company that mainly produces insert molding, but we also produce inlay, membrane switch, touch sensor, and DMB antenna.

  2. We have our own patented screen printing technology, which is differentiated from others, and we have an in-house line from printing to injection in the production of IML products.

  3. We maintain on-time delivery and high quality through daily delivery quality control meetings, and we are practicing quality improvement TQM activities and quality TFT activities.

  4. Our unique competitiveness is based on our experience in developing numerous products and reflecting them in high-quality products to satisfy customers. Our slogan is "No Quality No Customer".

  5. In particular, Thai SUNGSU MECHATRONICS, which has entered Thailand, has fully localized the printing sector to strengthen overseas sales and have competitive prices.

  6. We are also committed to developing engineers within the company to meet the diversifying needs of our customers.




Certificates






2023. 01 Acquired SQ(Screen printing, Injection)

2021. 10 Obtained patent for IME Production Method

2020. 09 Obtained patent for Insert Mold laminating Method

2020. 04 Established Research institute

2018. 05 Acquired the ISO 9001 & 14001 Re-Certifications

2017. 12 Acquired IATF 16949

2015. 04 Obtained patent for screen automatic washer

2014. 10 Obtained patent for plasma alien substance removal method

2014. 07 Obtained patent for Sticker method antenna manufacturing technology

2006. 03 Obtained patent for hermetically sealed membrane switches

2010. 08 Obtained patent for thin-film antenna printed circuits attached to the inner side of a mobile phone case

2006. 05 Acquired the ISO 9001 & 14001 Certifications




Products

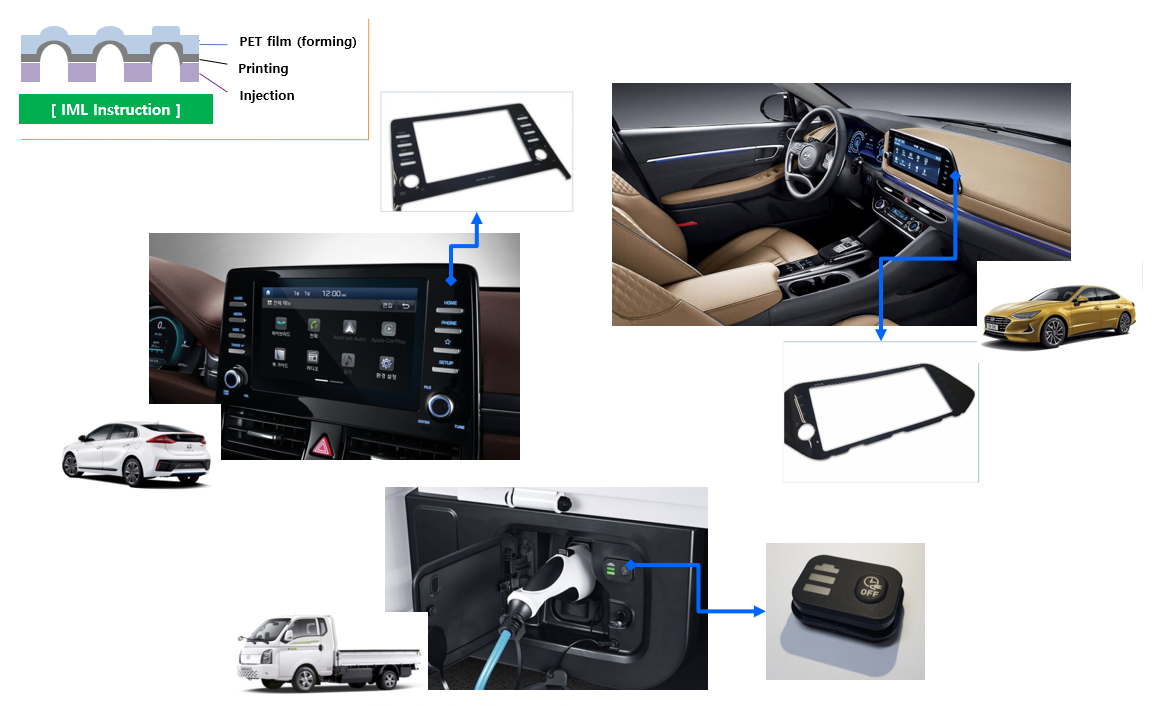

 IML (Insert Molding Label) _ Vehicle



A method of uniting after applying an adhesive to the printed film upon completion of forming and trimming, Then injecting it into the mold

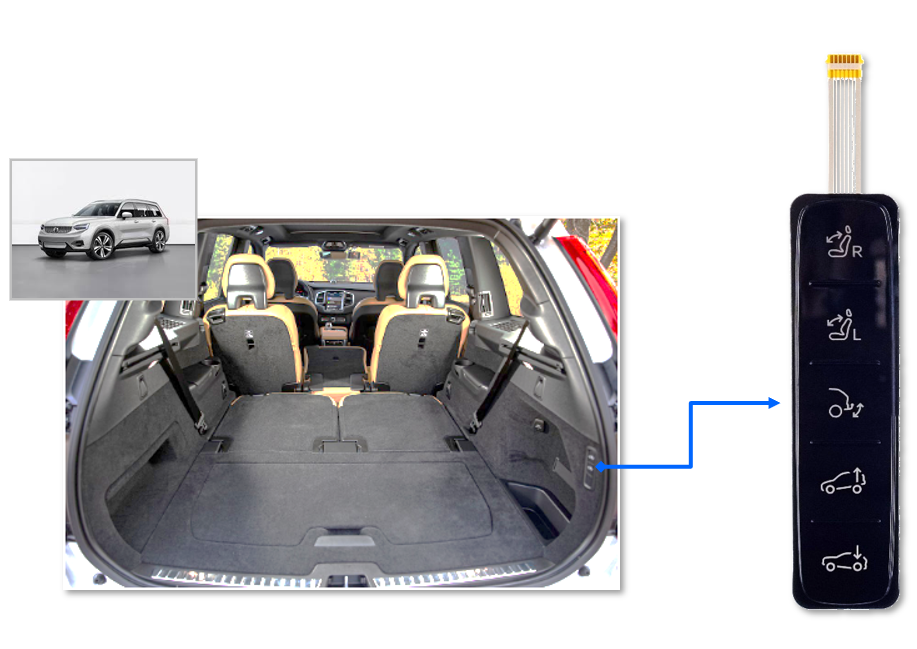

IMEA(In-mold Electronics Assembly)_ Vehicle



A method of printing a circuit using conductive ink on the flexible film After attaching the LED on circuit film, The IML film and circuit film are simultaneously injection

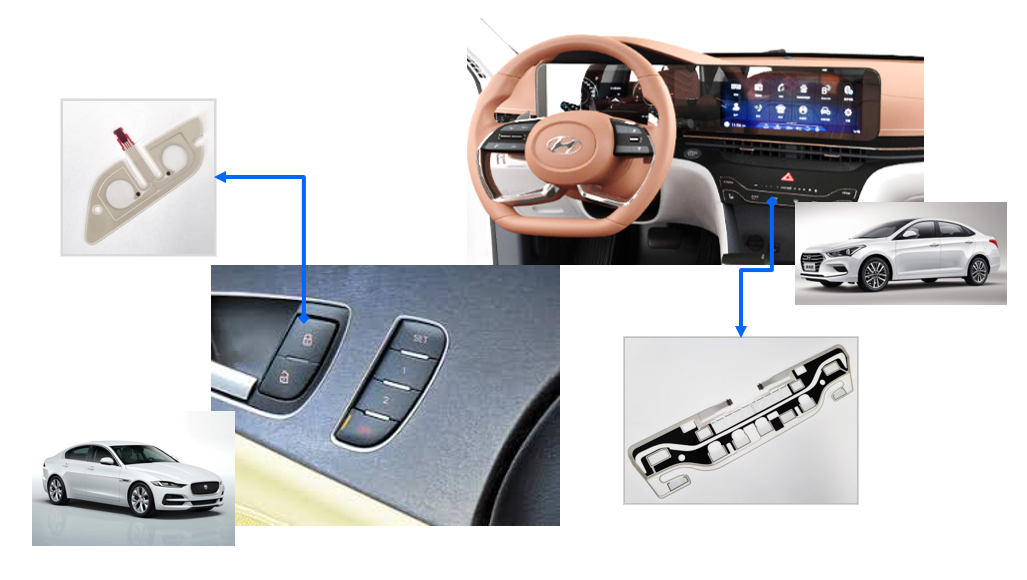

Touch Sensor_ Vehicle



A method of printing a circuit using conductive ink on the flexible film

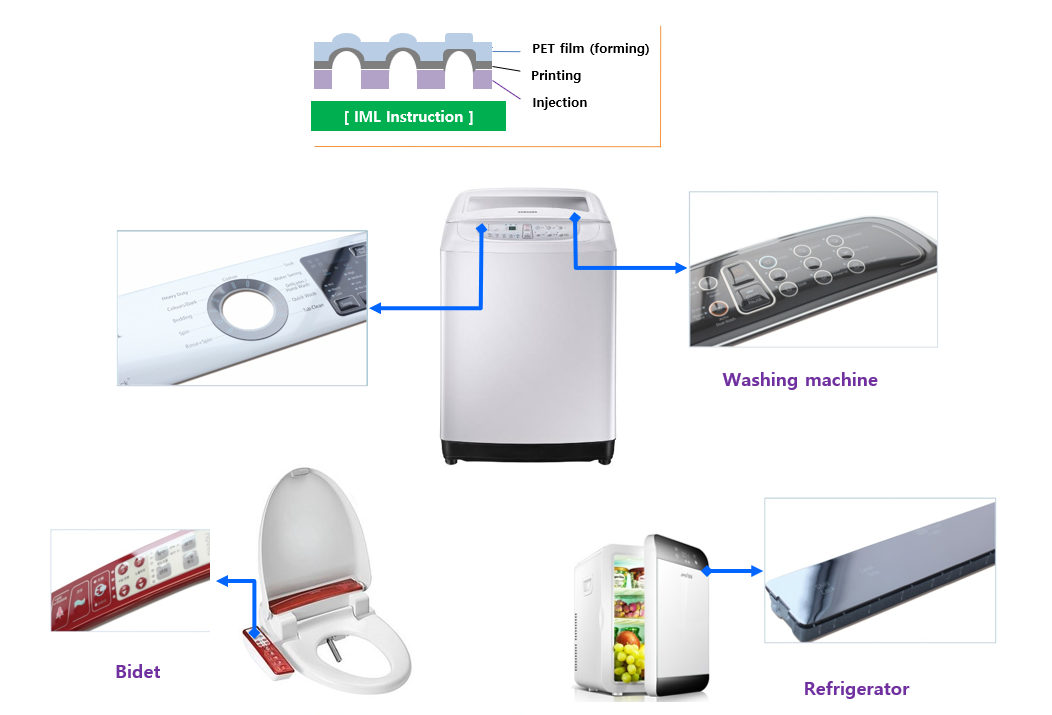

IML (Insert Molding Label) _ Household Appliance



A method of uniting after applying an adhesive to the printed film upon completion of forming and trimming, Then injecting it into the mold


Production Facilities Status

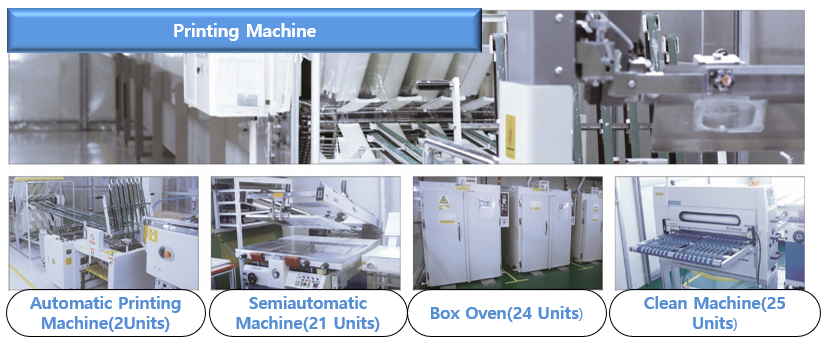

Printing Machine



◎ Automatic printing machine
From film receipt and settlement to printing and drying facilities where all processes are automated

◎ Semiautomatic Machine
From film receipt and settlement to rinting         and drying a manual facility

◎ Box Oven
semi-automatic drying of printed filmfacilities for making

◎ Clean Machine
During the semi-automatic printing process, on the printing film facilities for removing attached foreign substances

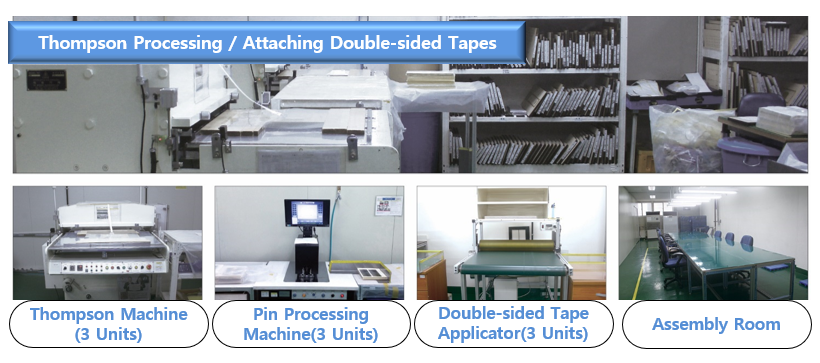

Thompson Processing / Attaching Double-sided Tapes



◎ Thompsin Machine
in the form of post-processing the printed         film facilities for cutting

◎ PIN Processing Machine
a datum point for post-processing a printed film facilities for drilling (Hole)

◎ Double-side tape applicator
Adhesion of the finished print film to the surface facilities to attach TAPE

◎ Assembly Room
To protect the surface of the finished product attach a protective film or reinforce a touch type film attach tape

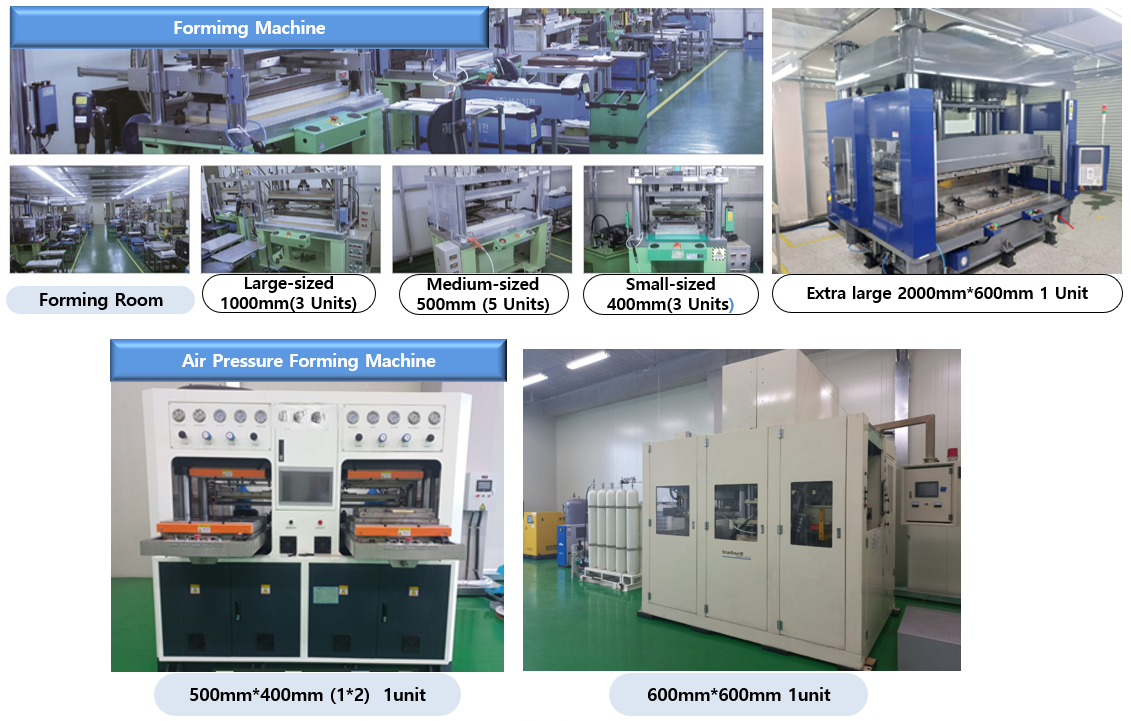

Formimg Machine
Air Pressure Forming Machine



◎ What is Forming?
The customer requested the printed film framed to shape compressed with a mold to create a shape

※  As a whole process for IML injection through forming, the basic shape of the product make it, completely form it after the injection is completed  allow the product to be implemented

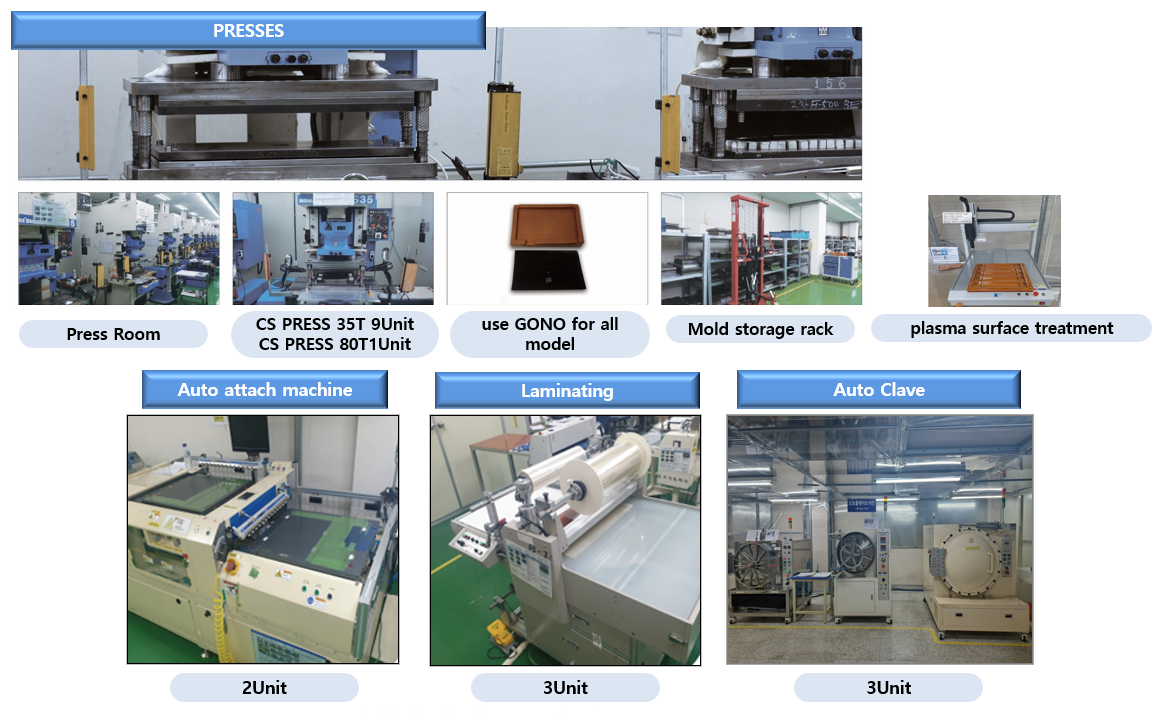

PRESSES / Auto attach machine
Laminating / Auto Clave



◎ Press function
Form the film that has been printed formed film into an injection mold
Only the areas required to be fitted the process of cutting off

※ Processing methods include press molds, thompson processing (wood, Pinnacle)

◎ Auto attach Machine
To prevent air bubbles for OCA   attachment  in succession with a slope for the process of attaching

◎ Laminating Machine
Double-sided TAPE or protective  tape a process for attaching

◎ Auto Clave
the bubbles of the adhesive a process for eliminating

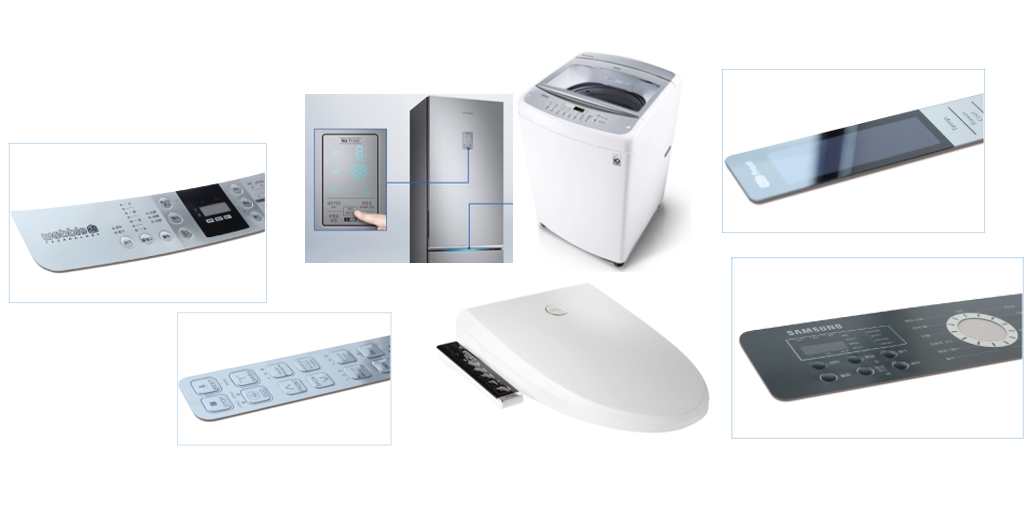

Inlay_ Household Appliance



A manufacturing method of enabling product to attach to a counterpart by attaching double-sided tape to a printed film or processed product

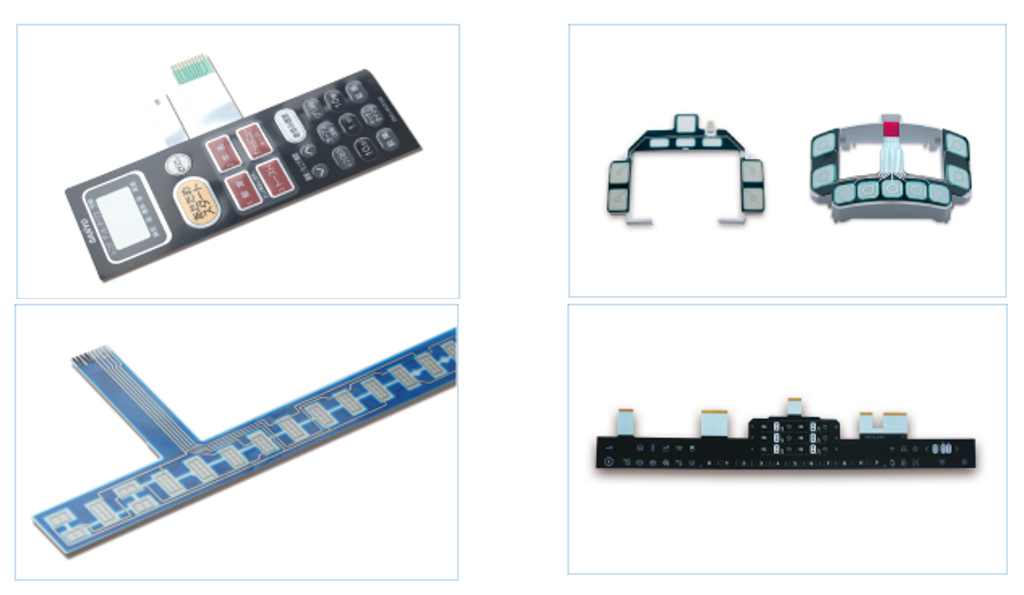

Membrance  Touch Sensor_ Household Appliance



MEMBRANE SWITCH
- A method to have product to electrified by printing a circuit
- Using conductive ink on the flexible fabric Classified as layer 1, Layer 2 and layer 3 according to the layers of a product

TOUCH SENSOR
- A production method to enable the product to electrified by Printing a circuit using conductive ink on the flexible fabric.
- A method of forming circuit using etching.

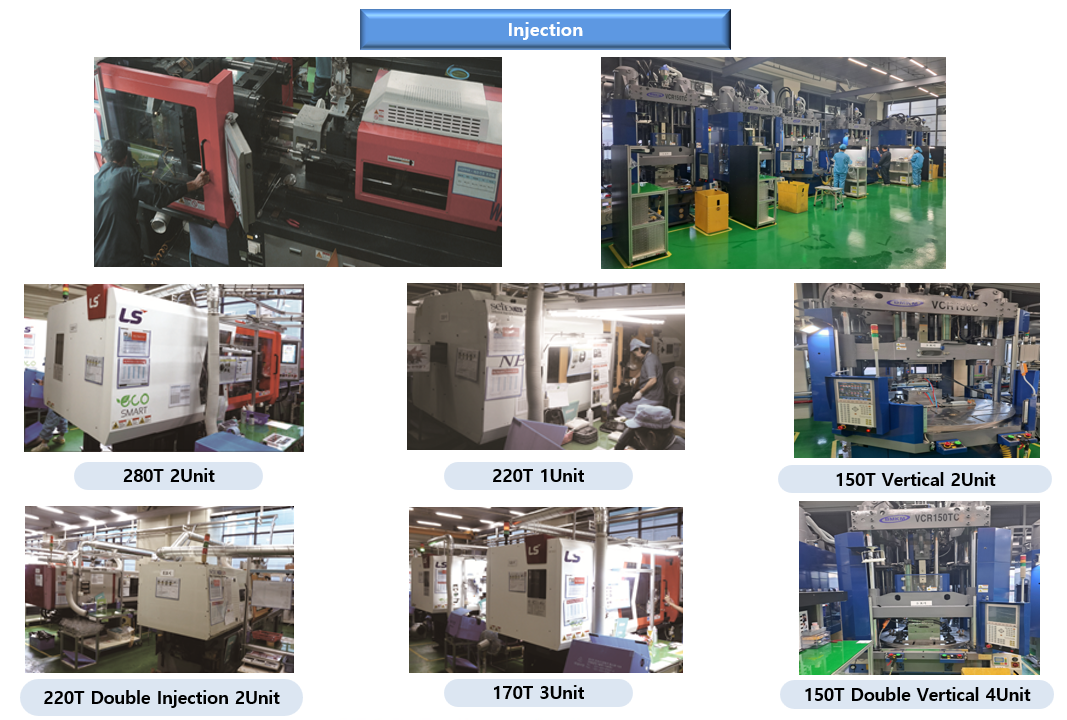

Injection



◎ Injection for IML
Forming and trimming the printed film
It is integrated by injection-molding it after mounting it on an injection mold Implement 2D and 3D shapes through the process of ordering

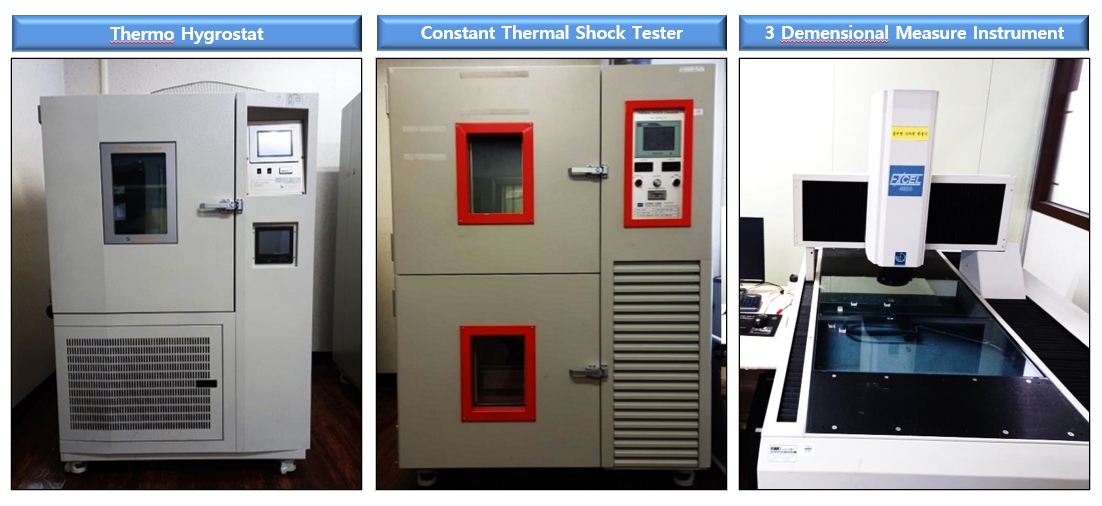

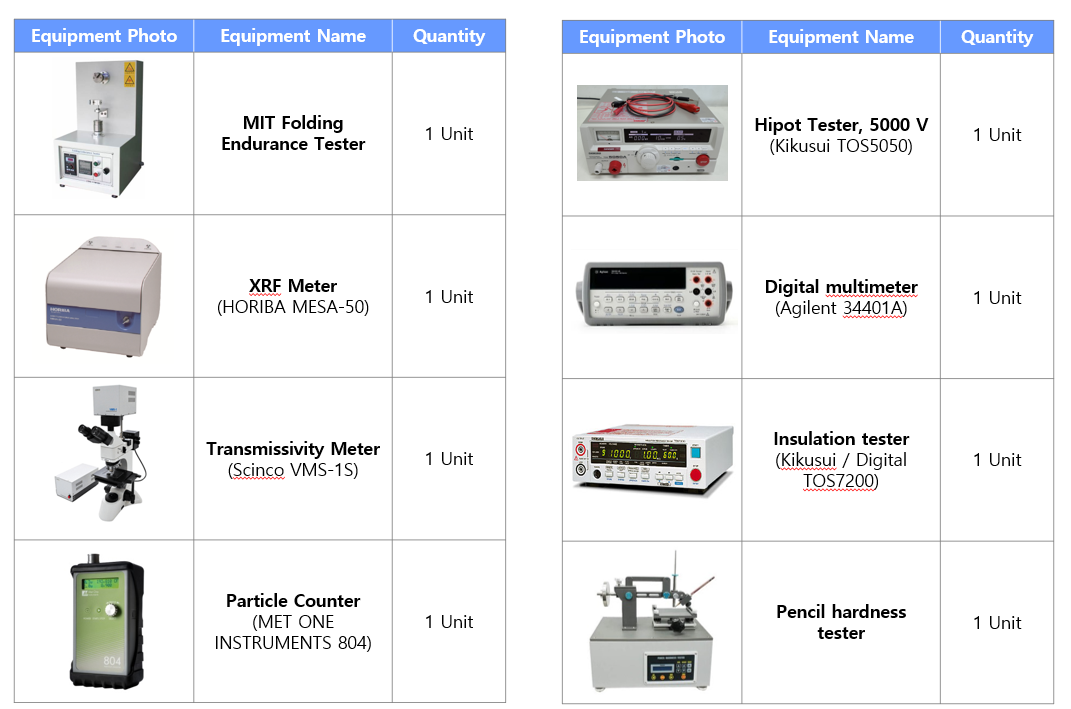

Instrument Status

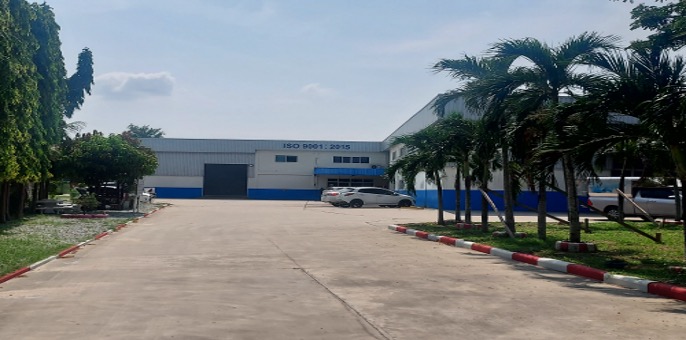

Thai Sungsu Company



CONTACT

Do you have any questions or inquiries? Need to get samples? Please feel free to contact us.


  • Company name(KR): SUNGSU MECHATRONICS (성수기전)
  • CEO: Ki-yeol Kang
  • Contact Person: Jongsu Hwang, Director
  • Address: 108, Wonsi-ro, Danwon-gu Ansan -si, Gyeonggi-do, Korea    15430
  • Phone: +82 10-9364-5894
  • Email: None
  • Website: www.ssmecha.net
  • Catalog: https://www.k-tradehub.com/catalog/sungsu
