Welcome to REZONTECH
Rezontech Co., Ltd. is the world-class Flame Detector Manufacturer has been
leading the Flame Detector market in Korea since 2004.
We developed first-ever IR3 type Flame Detectors in Korea by own unique technology. Rezontech keep growing with continuous R&D for fire detection technology. Thus we acquired 120 Local & Global certificates and approvals on Flame Detectors and furnished it over 50 countries in the world.
We are proud to supply state of the art Flame Detectors along with the Automatic Gas Suppression System to the many industrial leading clients & military facilities to protect human life & asset from the fire disaster.
We will conquer the global market based on our continuous efforts, know-how & reliability with best service and best quality.
Our product Features and strong points
Our flame detectors are capable of finding out their own disorder using high performance self-diagnosis function equipped inside the detectors.
Our products are equipped with a variety of signals and controls. They can make more quickly or precisely trigger an alarm by providing a flexible interface for the customized fire detection.

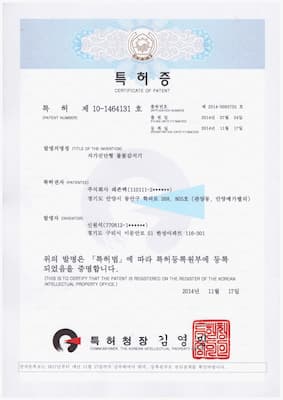

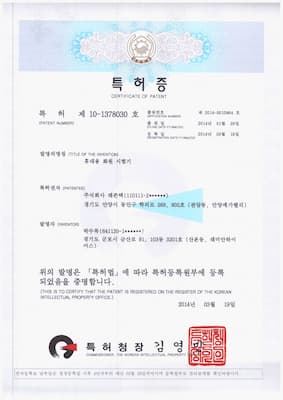

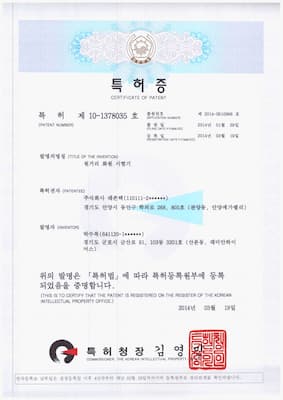

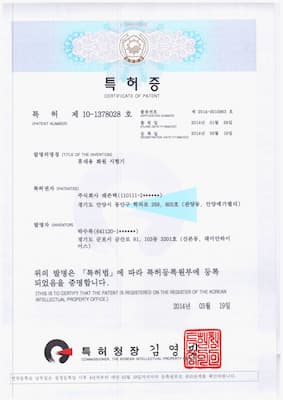

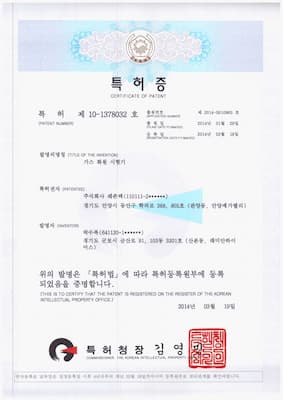

Certificate of Patent
-
Self-diagnostic Flame Detector
-
Flame detector tester available from remote
-
Gas used to flame detector tester
-
Portable flame detector tester (1&2)
PRODUCTS

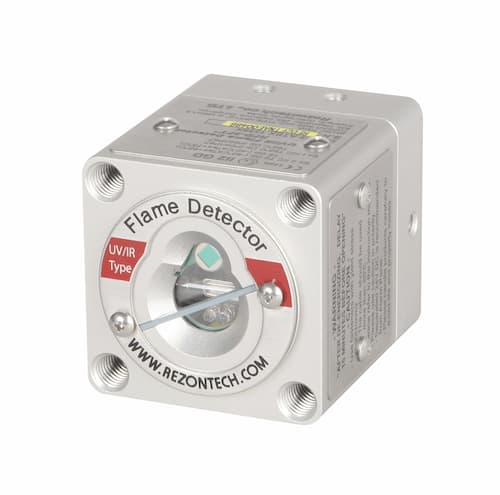

RFD-2FTN
RFD-2FTN is a UV/IR type Flame Detector.
Identify fire when both UV and IR sensors simultaneously detect the presence of a flame.
Maximum 30 meters of detection range with a 100 degrees cone of vision.
Permits operation at Hazardous areas.
User selectable output options among Relays, 4-20㎃ stepped output, and RS-485.
• Type : Ultraviolet and Infrared, Outdoor, Explosion-proof
• Nominal sensing range : 30m
• Sensing angle : 100°, Cone type
• Operating temp. : -40 ~ +75°C
• Keeping temp. : -50 ~ +90°C
• Humidity : 0~95%
• performance :
- FM3260
- GB 12791(CCC), EN 50130-4(CE)
• Explosion proof :
- T5/T6, IP67, Ex d IIC (KGS)
- Ex tD A21 IP67 T100°C (KGS)
- II 2 G Ex d IIC T5/T6 Gb(ATEX)
- Ex dIIC T5/T6 Gb(NEPSI)
• water tight : IP67(KGS)
• Output signal
- Relay
- 4~20mA
- RS485
• Function
- Diagnostic sensor fault enable - Self test
- Remote self diagnostic ON/OFF control ( BIT )

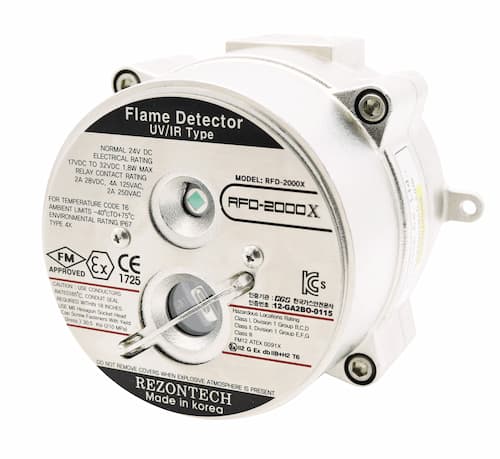

RFD-2000X
RFD-2000X is a UV/IR type Flame Detector with international certifications.
Identify fire when both UV and IR sensors simultaneously detect the presence of a flame.
Maximum 30 meters of detection range with a 90 degrees cone of vision.
Permits operation at Hazardous areas.
User selectable output options among Relays, 4-20㎃ stepped output, and RS-485.
• Type : Ultraviolet and Infrared
• Detection Range : 100ft(30m) for N-Heptane fire
• Field of View : Horizontal 90°, Vertical 90°
• Temperature Range Operating : -40℃ to +75℃
• Storage : -50℃ to +80℃
• Humidity Range : 0 to 95% relative humidity
• performance : FM3260, EN 54-10(CPR, LPCB)
• Explosion proof :
- Ex d IIB+H2 T6 IP67(KGS)
- Class I Division 1 Groups B,C and D(FMUS)
- Class II/III Division 1 Groups E,F and G(FMUS)
- T6: -40°F(-40°C) to +176°F(+75°C)(FMUS)
- IP67/NEMA 4X(FMUS)
- II 2 G Ex db IIB+H2 T6(ATEX)
- Ex db IIB+H2 T6(IECEx)
• water tight : IP67(KGS)
• Output
- Relay
· Fire Alarm, Fault Alarm, Warning Alarm
· From A or B Selectable, 28VDC, 2A
- 4-20mA
- RS-485

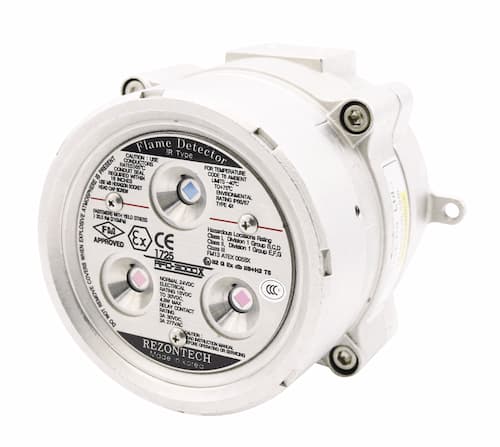

RFD-3000X
RFD-3000X is a Triple IR (IR3) Flame Detector with international certifications.
Identify fire by analyzing the IR wavelengths of a long distance flame.
Maximum 60 meters of detection range with a 90 degrees cone of vision.
Permits operation at Hazardous areas.
User selectable output options among Relays, 4-20㎃ stepped output, and RS-485.
• Type : Triple Infrared (IR3)
• Detection Range : 200ft(60m(FM), 50m(KFI)) for n-Heptane fire
• Field of View : Horizontal 90°, Vertical 90°
• Temperature Range Operating : -40℃ to +75℃
• Humidity Range : 0 to 95% relative humidity
• performance :
- FM3260
- GB 15631-2008(CCC)
• Explosion proof :
- Ex d IIB+H2 T5 IP66/67(KGS)
- Class I Division 1 Groups B,C and D(FM)
- Class II/III Division 1 Groups E,F and G(FM)
- II 2G Ex db IIB+H2 T5 Ta= -40°C to 75°C IP66/67(ATEX)
- Ex db IIB+H2 T5 Ta=-40°C to 75°C IP66/67(IECEx)
- Ex dIIB+H2 T5 Gb(NEPSI)
• Output
- Relay
· Fire Alarm, Fault Alarm, Warning Alarm
· From A or B Selectable, 30VDC, 3A
- 4-20mA
- RS-485

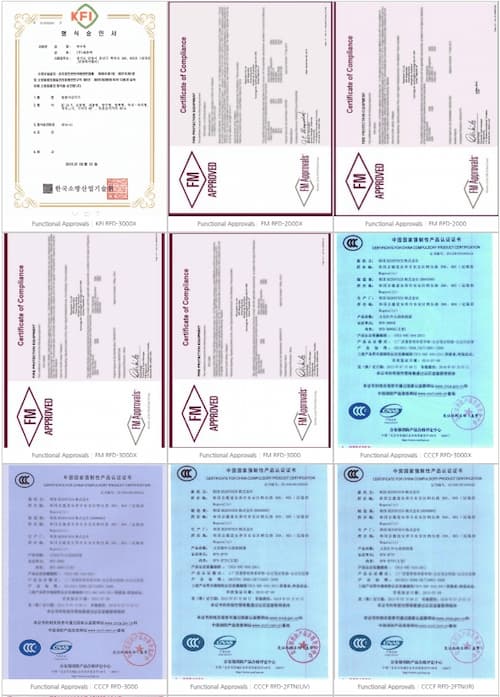

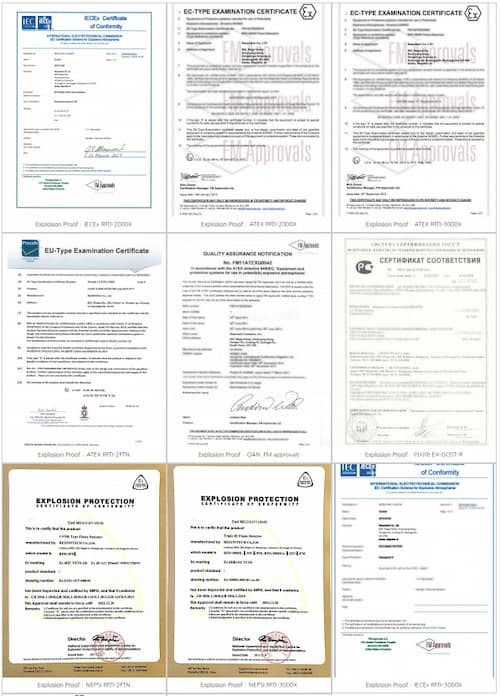

International Authentication
As mentioned in our company profile, we have acquired 120 Local & Global certificates and approvals including FM Approval, FM(US) Approval ATEX, IECEx, CCC and various other approvals from around the world.
These certificates and approvals not only demonstrate our product’s high performance but also ensure that it meets field requirements.
